Yipinservo X150kg Pro 150kg High Torque Brushless Digital Servo - IP67 Waterproof, Industrial Grade for Robots & RC Models DJ2
sku:
$326.00 USD
Free shipping
Quantity
Description
Key Selling Points
- 150kg·cm Max Torque (Up to 170kg·cm @14V) for Heavy-Duty Industrial Performance
- Hall-Effect Brushless Motor for Low Power Consumption, High Efficiency & Linear Response
- All-Metal Stainless Steel Gear Set with Double Ball Bearings, Anti-Stripping & Durable

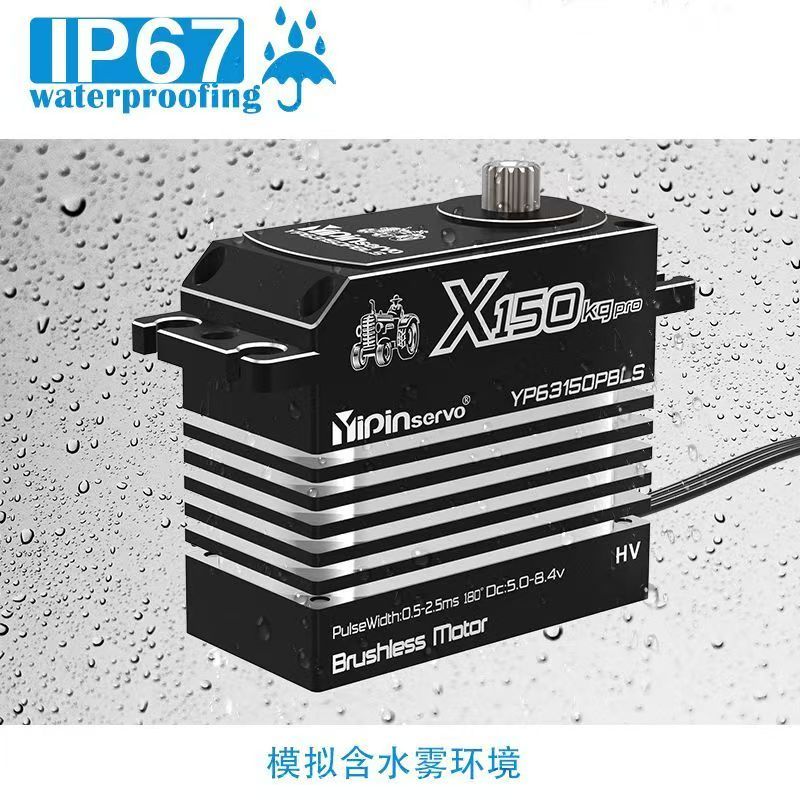

- IP67 Waterproof Rating with CNC Aluminum Alloy Housing for Fast Heat Dissipation & Corrosion Resistance
- Wide Voltage 5.0-8.4V/11.1-14V, Supports 180°/358°/360° Multi-Angle Settings
Specifications
- Item Details
- Brand Yipinservo
- Model X150kg Pro / YP63150PBLS
- Operating Voltage DC 5.0-8.4V / 11.1-14V
- No-Load Speed 0.10sec/60° (@12V) / 0.09sec/60° (@14V)
- Max Torque 150kg·cm (@13V) / 170kg·cm (@14V)
- Servo Type Brushless Digital Servo
- Motor Type Hall-Effect Brushless Motor
- Gear Material All-Metal Stainless Steel Gear Set with Double Ball Bearings
- Housing Material 6061-T6 Aircraft Grade Aluminum Alloy
- Waterproof Rating IP67
- Dead Band Width ≤2us
- Operating Temperature -40℃~80℃
- Storage Temperature -20℃~60℃
- Weight 210g

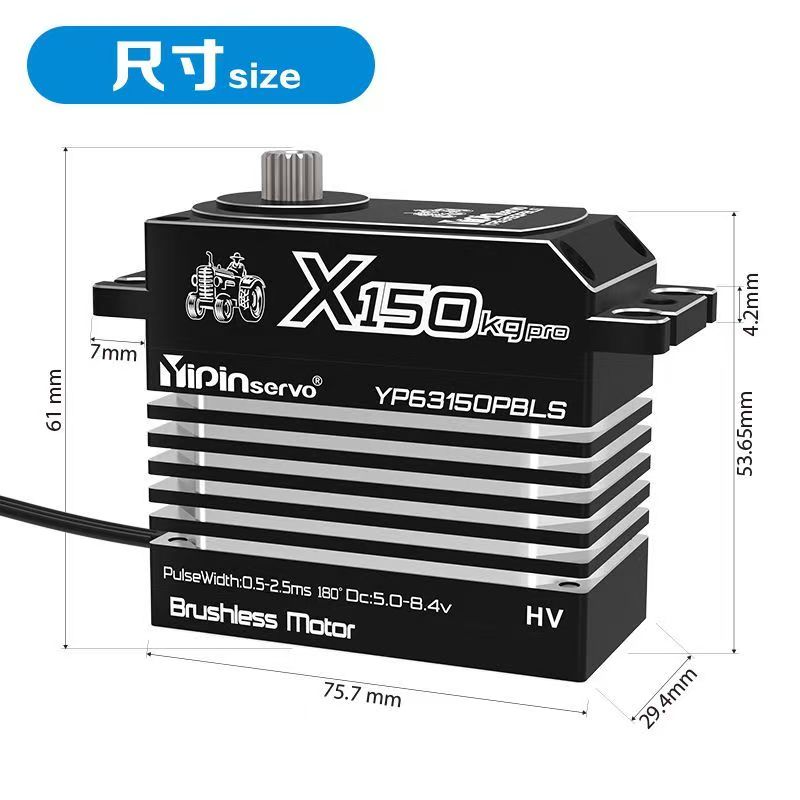

- Dimensions 75.7×29.4×61mm

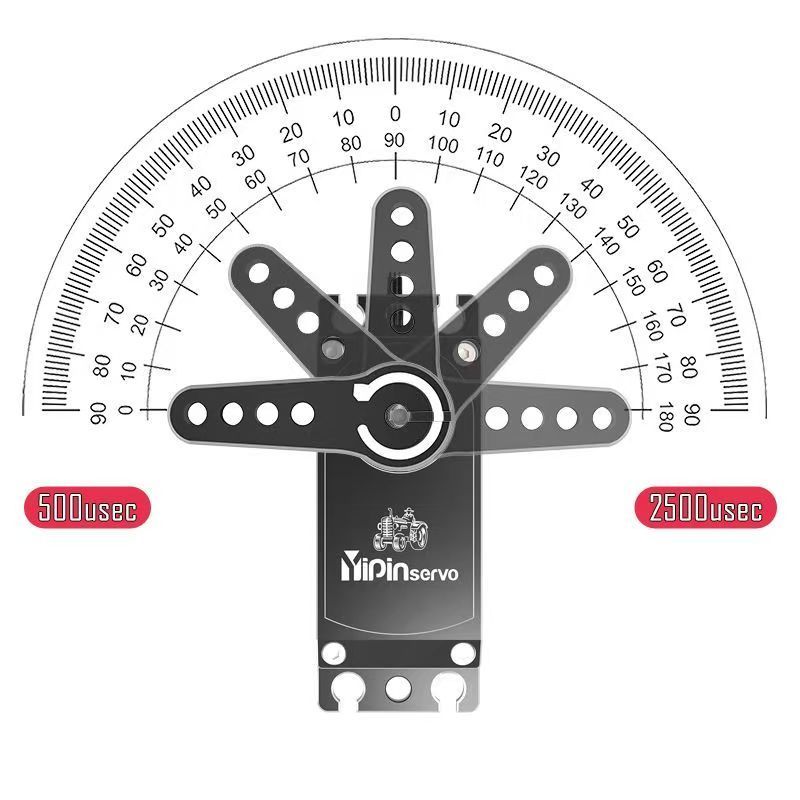

- Rotation Angle 180°/358°/360° Optional
- Pulse Width Range 500-2500us
Product Description
- The Yipinservo X150kg Pro is an industrial-grade high-performance brushless digital servo designed for heavy-load applications, making it the ideal choice for RC models, industrial robots, robotic arms, and more.
- Equipped with a Hall-effect brushless motor, it offers lower power consumption, higher efficiency, and more linear response compared to traditional brushed servos, ensuring stable and reliable performance while extending service life. The all-metal stainless steel gear set with double ball bearings features precise tooth spacing for high transmission efficiency and excellent torsional strength, resisting gear stripping even under prolonged heavy loads.
- The CNC one-piece 6061-T6 aircraft-grade aluminum housing, with anodized surface treatment, not only provides a premium look but also delivers excellent heat dissipation and corrosion resistance. Combined with an IP67 waterproof rating, it easily withstands harsh environments such as outdoor water exposure, humidity, and dust.
- Supporting wide voltage input and multi-angle settings, with a dead band width of ≤2us for high control precision and minimal play, it delivers powerful, accurate, and stable power output for large-scale RC models, industrial robot joint control, and DIY robotic arm projects.
Applications
- Steering control for large-scale RC crawlers, monster trucks, and off-road vehicles
- Joint drive for industrial robots, robotic arms, and smart devices
- High-load control scenarios for aircraft models, RC boats, and drones
- Other DIY projects requiring high-torque, high-stability servos

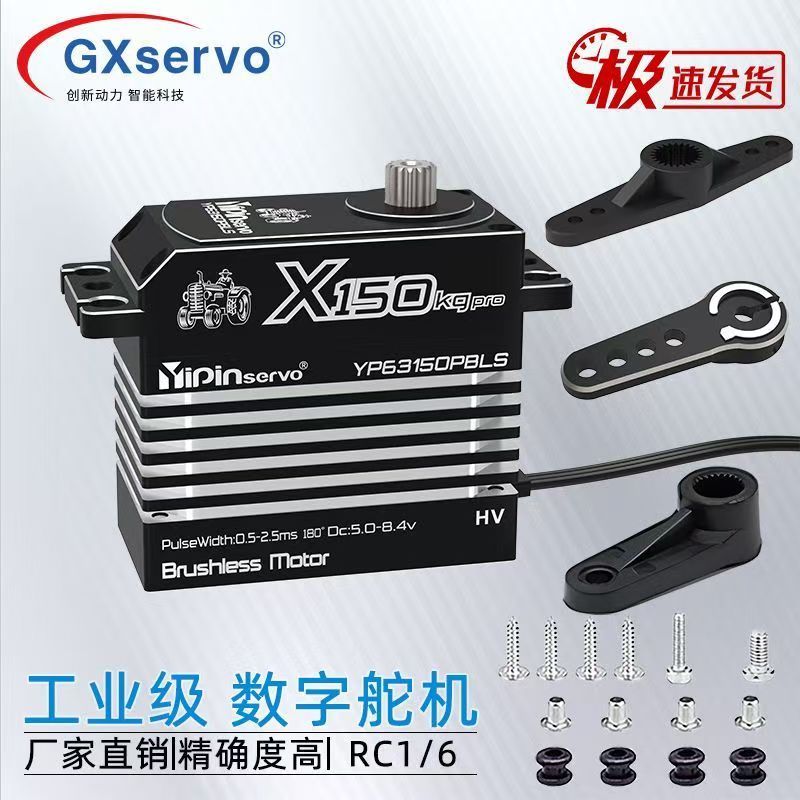

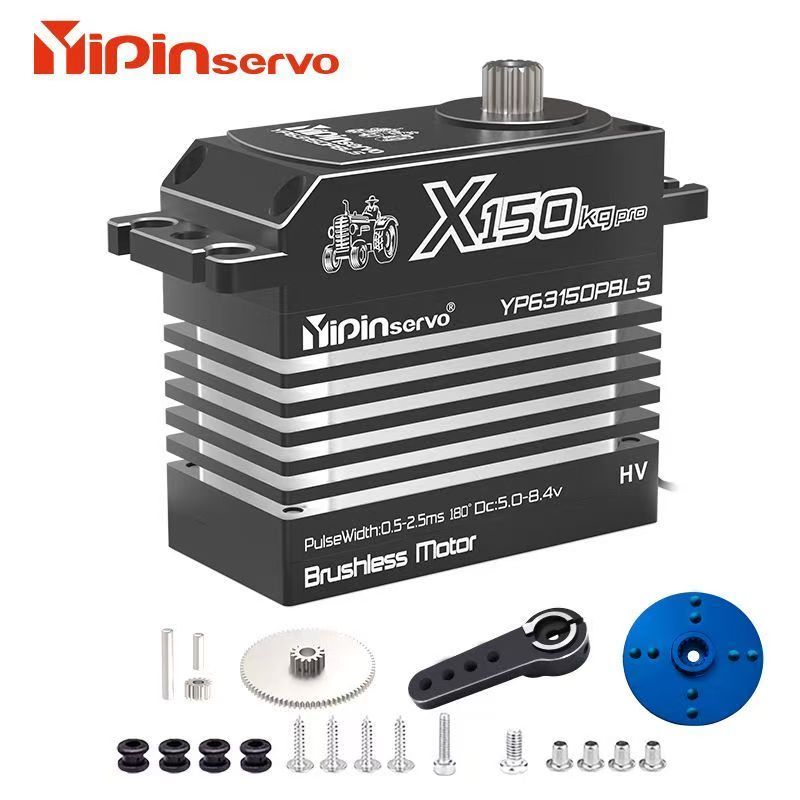

Package Contents
- Brushless Digital Servo ×1
- Servo Horn Set ×1
- Mounting Screws ×1 Set
- Instruction Manual ×1 (if included)
