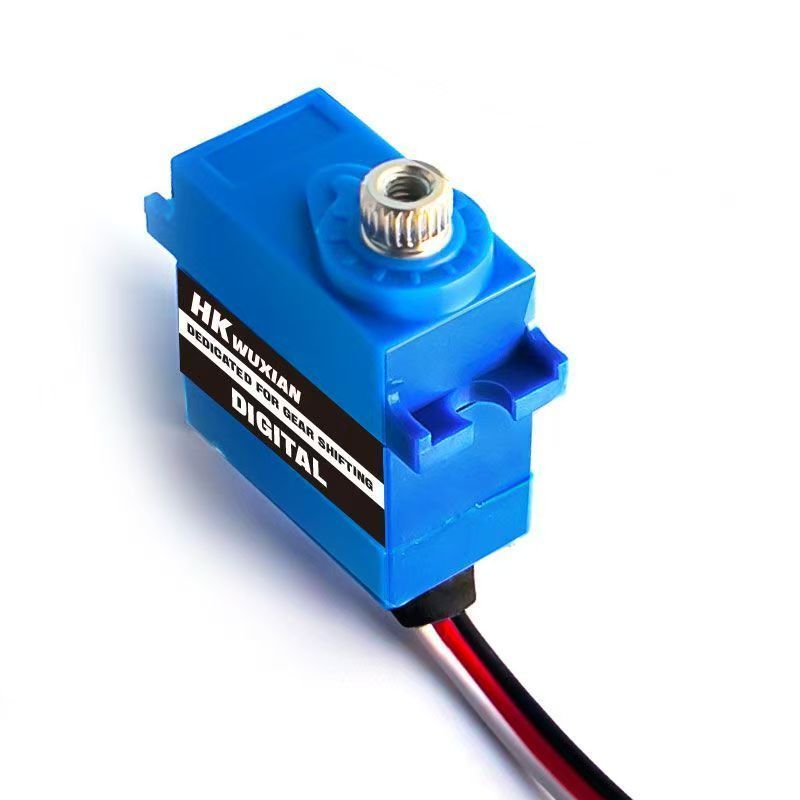

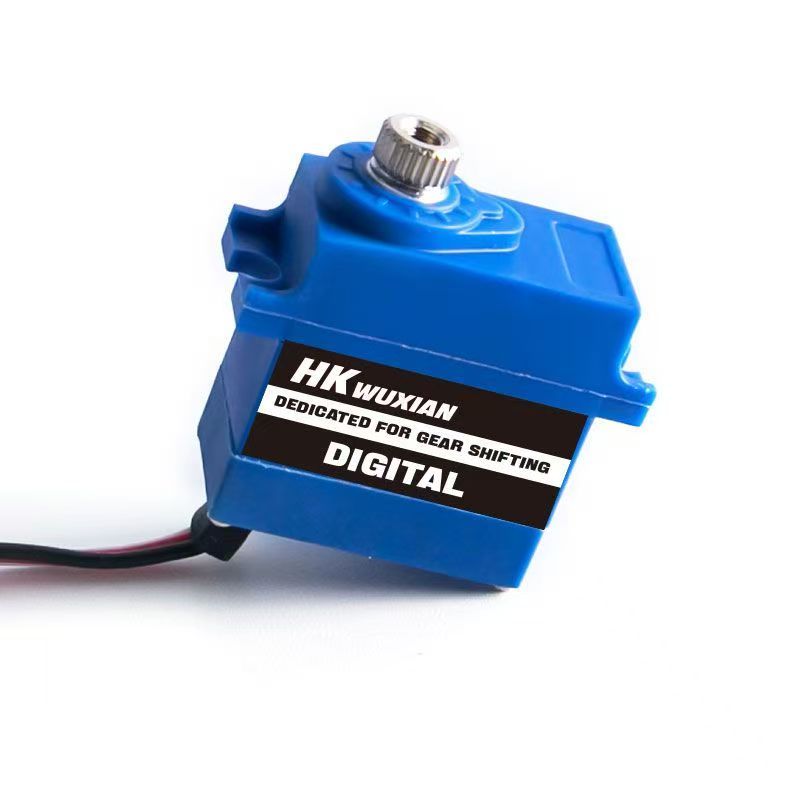

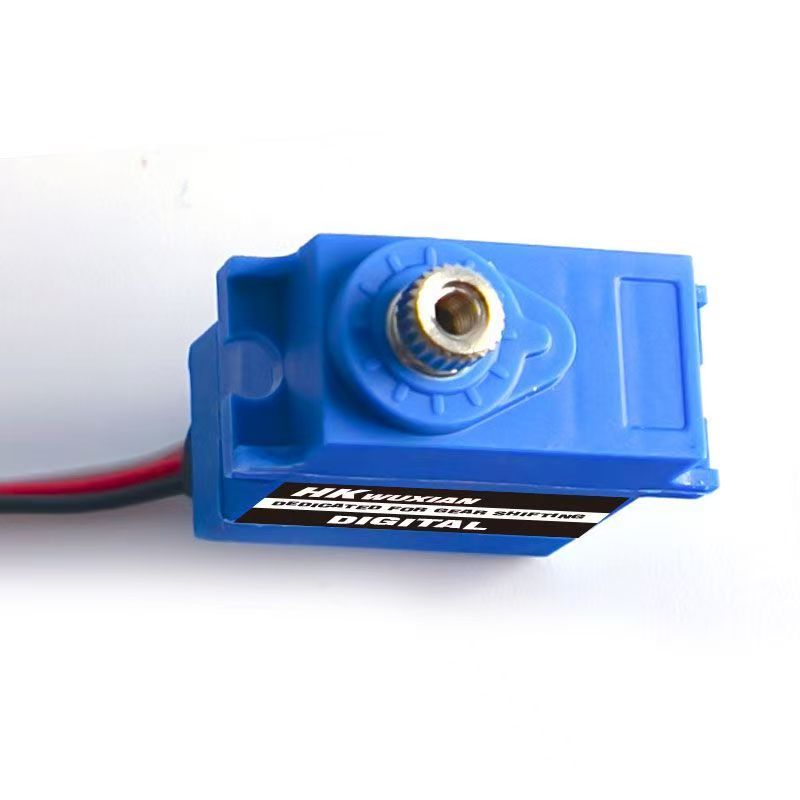

Hongke HK WUXIAN TR-4 Waterproof High-Voltage Metal Gear Servo 4.2kg Torque for RC Crawler Differential Lock & Gear Shift, Compatible with TRX4/SCX10/KM5 DJ11

sku:
$14.90 USD
Free shipping
Quantity

Description

Product Subtitle

  • IPX4 Waterproof 8.4V High-Voltage Digital Servo with Metal Gears, High Torque for TRX4, SCX10 and other crawler differential lock/gear shift control

Key Selling Points

  • IPX4 Waterproof Design: IPX4-rated waterproof housing resists splashes and shallow water, ideal for off-road crawling scenarios
  • Metal Gear Construction: High-precision metal gears offer excellent strength and anti-stripping performance for longer service life
  • High-Voltage High-Torque Output: Supports 6.0-8.4V wide voltage input, delivering 4.5kg/cm torque at 8.4V for powerful performance
  • 3-Way Protection: Built-in stall, over-voltage and over-temperature protection prevents motor burnout and extends servo life
  • Wide Compatibility: Fits TRX4, SCX10, Capra, KM5, G550 and most popular crawlers, direct replacement for 2065 servo
  • Fast Response: 0.10sec/60° operation speed with low noise and high precision for smooth gear shift and differential lock control

Product Specifications

  • Parameter Detailed Specification
  • Brand Hongke HK WUXIAN
  • Product Model TR-4 Waterproof High-Voltage Servo
  • Application RC crawler differential lock/gear shift (TRX4, SCX10, KM5, G550, etc.)
  • Operating Voltage 6.0V - 8.4V
  • Motor Type Iron Core Motor
  • Control Method PWM Digital Signal Control (0-180° adjustable)
  • Pulse Width Range 1000-2000μs (90°) / 500-2500μs (180°)
  • Operating Speed (6.0V) 0.12 sec/60°
  • Operating Speed (8.4V) 0.10 sec/60°
  • Output Torque (6.0V) 3.5 kg/cm
  • Output Torque (8.4V) 4.5 kg/cm (Rated 4.2kg)
  • Gear Material Metal
  • Waterproof Rating IPX4
  • Dimensions 23.2 × 12.5 × 25.6 mm
  • Weight 16.6 g
  • Wire Length 300 mm
  • Connector Definition Yellow: Signal / Red: Positive / Brown: Negative

Product Details & Advantages

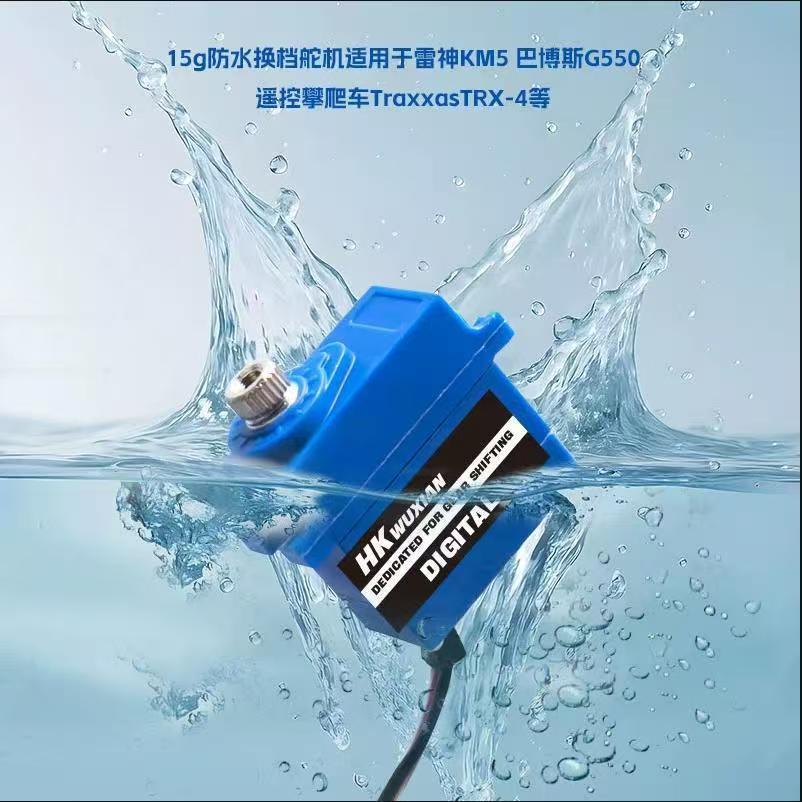

  • IPX4 Waterproof Housing: Sealed waterproof structure handles splashes and shallow water, improving reliability in off-road crawling scenarios.
  • High-Strength Metal Gears: Wear-resistant metal gear set offers excellent impact and anti-stripping performance, resisting damage under high loads for longer service life.
  • Wide-Voltage High-Voltage Drive: Supports 6.0-8.4V wide voltage input, with significantly increased torque in high-voltage mode to easily drive differential locks and gear shift mechanisms.
  • 3-Way Protection Circuit: Built-in stall, over-voltage and over-temperature protection automatically safeguards the motor under abnormal conditions to prevent burnout.
  • Standard Servo Interface: Universal PWM digital servo interface compatible with most RC crawler ESCs/receivers for easy installation and setup.
  • Compact Lightweight Design: 16.6g lightweight body fits servo mounting positions on TRX4, SCX10 and other models without additional modifications.

Application Scenarios

  • Traxxas TRX-4 crawler differential lock/gear shift servo modification
  • Axial SCX10 series crawler servo upgrade
  • Control for RC models like Raytheon KM5 and Brabus G550
  • High/low speed gear shift control for Land Rover Defender model cars
  • Other RC model scenarios requiring waterproof, high-torque servos

Usage Notes

  • Before installation, verify compatibility of the servo control signal with the receiver/ESC to avoid wiring errors.
  • The waterproof rating is IPX4. Do not submerge in water for extended periods; dry and inspect the servo after use in wet conditions.
  • Do not exceed the rated load during operation to prevent gear damage or motor burnout.
  • Adjust the servo travel according to the vehicle manual to avoid triggering the protection mechanism due to stall.

Package Includes

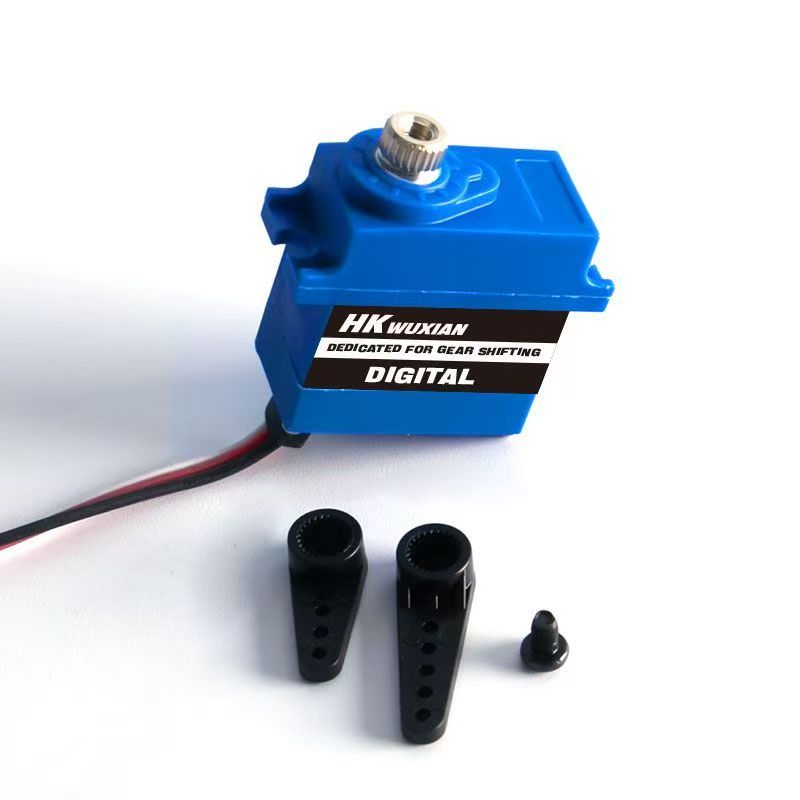

  • Hongke TR-4 Waterproof Servo × 1
  • (Accessories not specified; servo arms/screws included if applicable)
